Your Current Location ：Home » Products » Dishwasher » Flight type » Mini flight type dishwasher

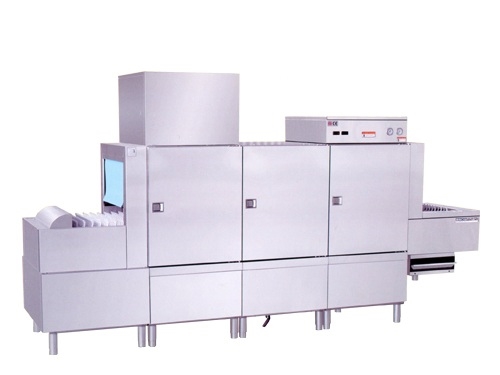

Name：Mini flight type dishwasher

Details

H version is with a dryer

Single cylinder:

Model	HD-2300F	HD-2300FH
Dimention/mm	28508881620	35508881996
Inlet dimention/mm	700	700
Outlet dimention/mm	750	750
Water tank volume/L	87	87
Water consumption per hour/L	300	300
Air quantity per hour/m³	-	4000
Conveyor speed（m/min）	1.5	1.5
Washing capacity per hour/PCS	3272	3272
Inlet water temperature/℃	10-50	10-50
Voltage/V	380	380
Total power/kw	48	57.8

Double cylinder:

Model	HD-2300FD	HD-2300FDH
Dimention/mm	35508881620	42508881996
Inlet dimention/mm	700	700
Outlet dimention/mm	750	750
Water tank volume/L	87*2	87*2
Water consumption per hour/L	300	300
Air quantity per hour/m³	-	4000
Conveyor speed（m/min）	2	2
Washing capacity per hour/PCS	4360	4360
Inlet water temperature/℃	10-50	10-50
Voltage/V	380	380
Total power/kw	59.2	69

Triple cylinder:

Model	HD-2300FT	HD-2300FTH
Dimention/mm	42508881620	49508881996
Inlet dimention/mm	700	700
Outlet dimention/mm	750	750
Water tank volume/L	87*3	87*3
Water consumption per hour/L	300	300
Air quantity per hour/m³	-	4000
Conveyor speed（m/min）	2.5	2.5
Washing capacity per hour/PCS	5450	5450
Inlet water temperature/℃	10-50	10-50
Voltage/V	380	380
Total power/kw	70.4	80.2
