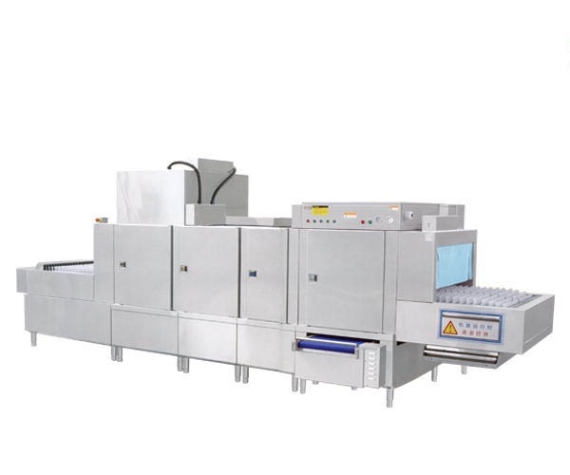

Name：Flight type dishwasher EF

Details

Without dryer:

Model	HD-10000EF （single cylinder）	HD-10000EFD （double cylinder）	HD-10000DFT （triple cylinder）
Dimention/mm	418013001680	508013001680	598013001680
Inlet dimention/mm	1000	1000	1000
Outlet dimention/mm	1580	1580	1580
Max cleaning width/L	1042	1042	1042
Max cleaning height/L	440	440	440
Conveyor speed（m/min）	1.5	2	2.5
Washing capacity per hour/PCS	6545	8727	10909
Inlet water temperature/℃	10-50	10-50	10-50
Voltage/V	380	380	380
Total power/kw	58	61	73

With dryer:

Model	HD-10000EFH （single cylinder）	HD-10000EFDH （double cylinder）	HD-10000DFTH （triple cylinder）
Dimention/mm	508013002104	598013002104	688013002104
Inlet dimention/mm	1000	1000	1000
Outlet dimention/mm	1580	1580	1580
Max cleaning width/L	1042	1042	1042
Max cleaning height/L	440	440	440
Conveyor speed（m/min）	1.5	2	2.5
Washing capacity per hour/PCS	6545	8727	10909
Inlet water temperature/℃	10-50	10-50	10-50
Voltage/V	380	380	380
Total power/kw	77	80	92
