• Laser-cut joints, automatic welding and polishes. Screws hidden from view.
• Double walled lid balanced by means of a hinge with front handle, with diagonal opening to 75° which allows the lid to be kept open in any position.
• Tank inbuilt into the surface top by robotic welding, manufactured in AISI-304 stainless steel, with the bottom of the tank in AISI-316L stainless steel.
• Tank filling with hot or cold water by electrovalve, activated with a single switch located on the front panel.
• Tank emptying by 2” safety valve with handle in athermic material and safe and effortless handling.
• Robust and reliable filter for draining the tank manufactured in AISI-304 stainless steel. Easily extractable.
• Controls with protective base and system against water infiltration.
• High temperature enamelled cast iron flue protector.
• Access to the components from the front.
• Machines with IPX5 grade water protection.
• Heating by heating elements located in the lower part of the bain marie.

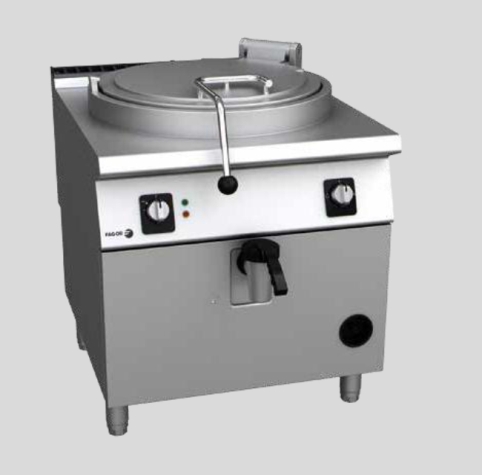

Bain marie electric models
• Heating controlled by energy regulator and pressure switch.
• Bain marie chamber around the tank, with automatic filling system when the machine is connected.
• Automatic chamber level control with quadruple security: pressure switch to control the pressure in the chamber, overpressure security valve, thermostat to limit overheating in the chamber and pressure gauge incorporated into the surface top.
• Automatic flushing of the chamber.
• Heating at the bottom of the pan acts on the water in the surrounding chamber, meaning that the saturated steam generated at a temperature of 107 °C heats the bottom and sides of the tank in a uniform manner. The temperature reached is lower than that obtained with direct heating.
• Inbuilt pan floor to avoid deformations.
• Indicator light to show when the machine is connected and when it is heating.
